Stress-test the deal in real time.
Every assumption is linked. Drag any slider — total program, lease rate, coverage, construction cost — and every metric, chart, and valuation re-models instantly. This is what institutional intelligence looks like before capital is deployed.
ZBase™ · Project #ZFW000215
Mixed-Use Multi-Family — 1328 E. Apache Blvd.

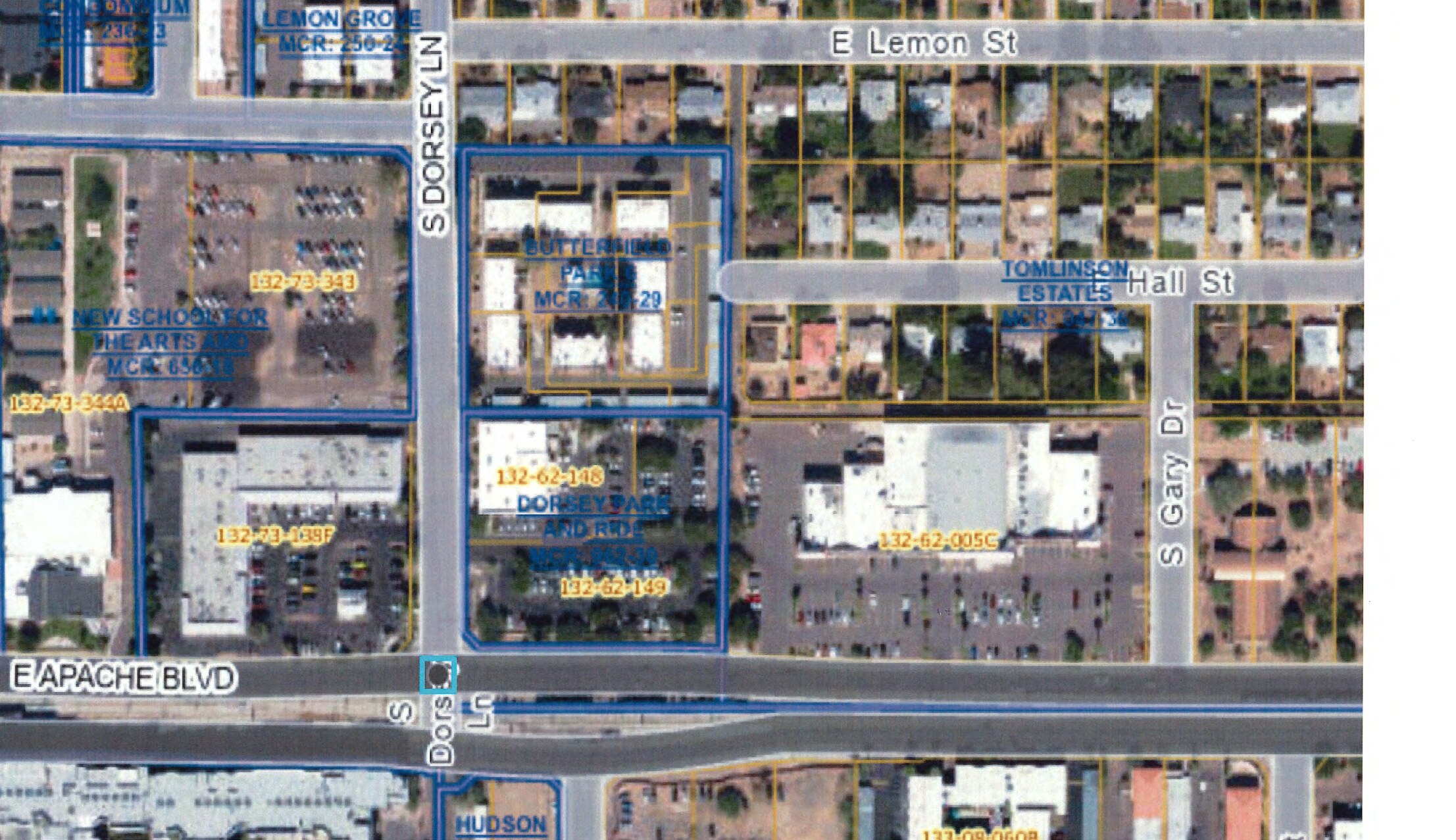

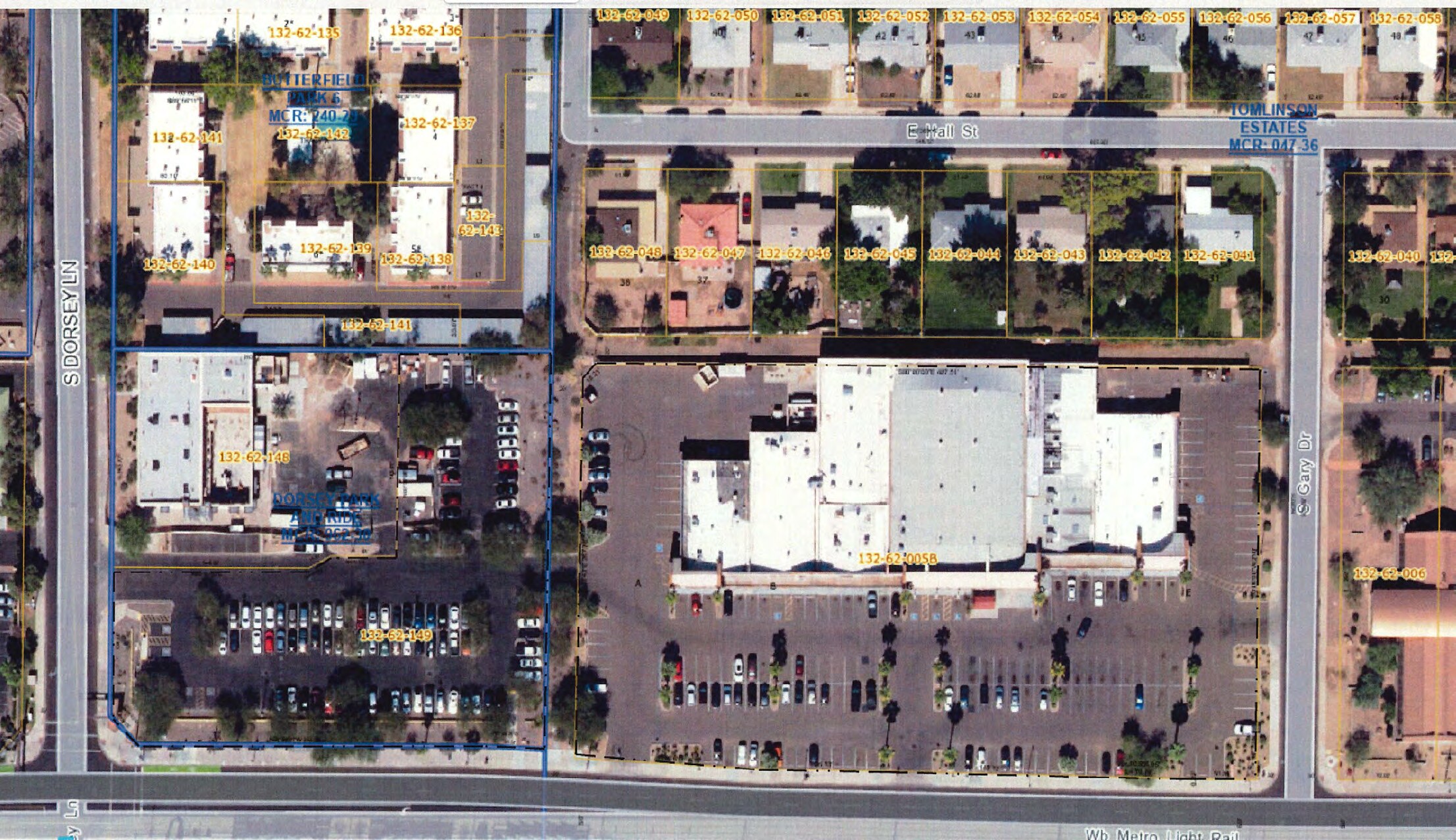

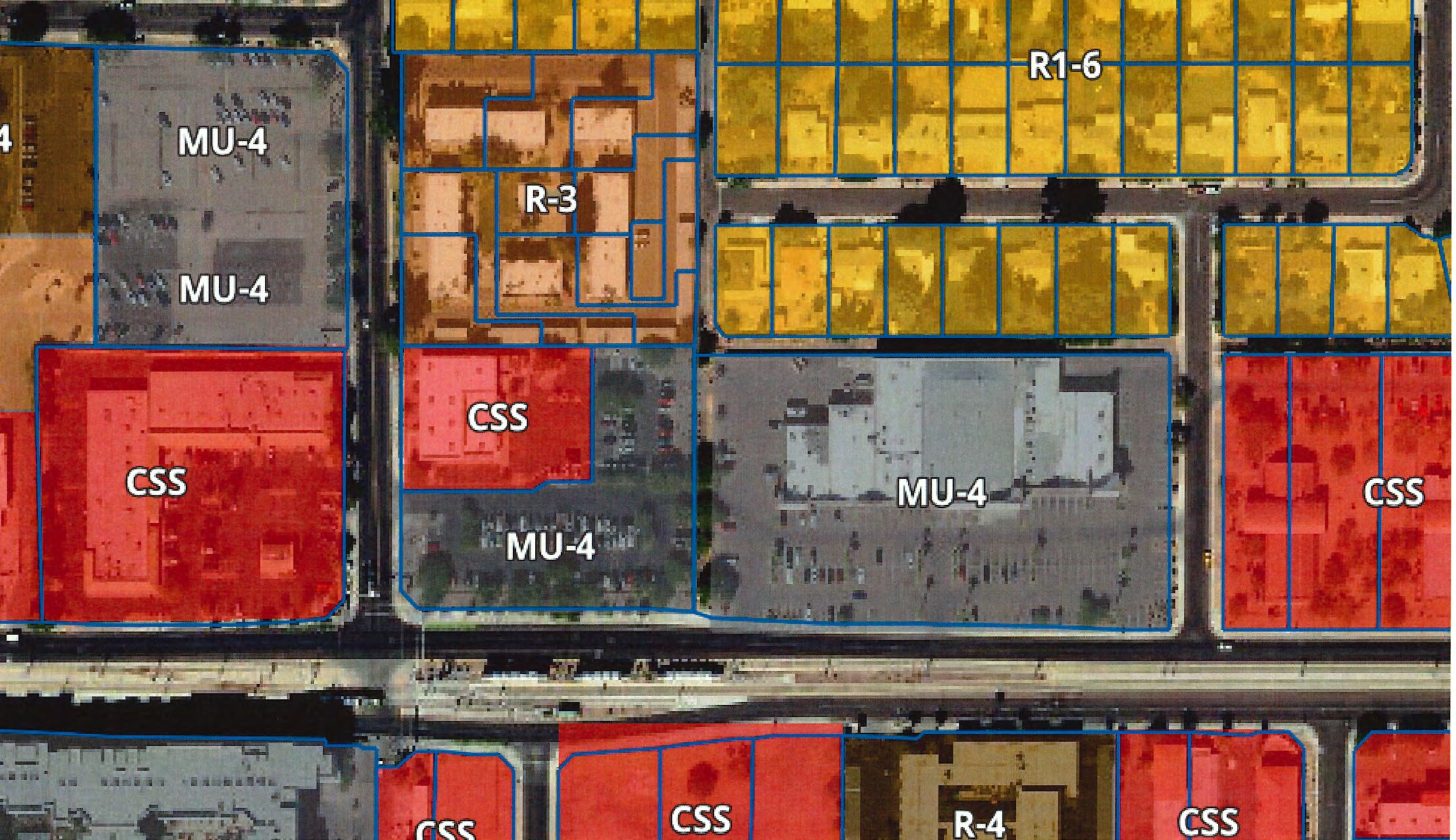

Tempe, AZ · Parcel 132-62-005C · MU-4 / R-3 / R1-6 / CSS · Apache Blvd TOD corridor
Three-site TOD development. Site A: 3-story civic + rooftop. Site B: 5-story grocer + retail + residences. Site C: 5-story residences + 20 townhouses. Stress-tested by combined GBA, $/SF, and parking ratio — not by unit count alone.
● Live stress-test · drag the sliders below
● Live Assumptions
Drag any slider — units, retail SF, parking ratio, cost, and schedule re-model instantly.
Residential Units244 units
Avg SF / Unit1150 SF
Retail + Grocer SF22,300 SF
Construction $/SF$445/SF
Parking Ratio2.00 /unit
Amenity / Civic / Rooftop25,000 SF
Months to Open38 mo
Total GBA SF
498,700SF
244 units · 3 sites
Residential
244
Apt + townhouses
Retail / Grocer
22,300SF
Ground-floor + grocer
Amenity / Civic / Rooftop
25,000SF
Site A civic + Site B/C decks
Structured Stalls
488
@ 2.00 stalls/unit
Project Range
$251M
@ $445/SF
Cost / Unit
$1.0M
Practical read
Months to Open
38mo
Phased delivery
● SECTION 01 — SITE + CONTEXT

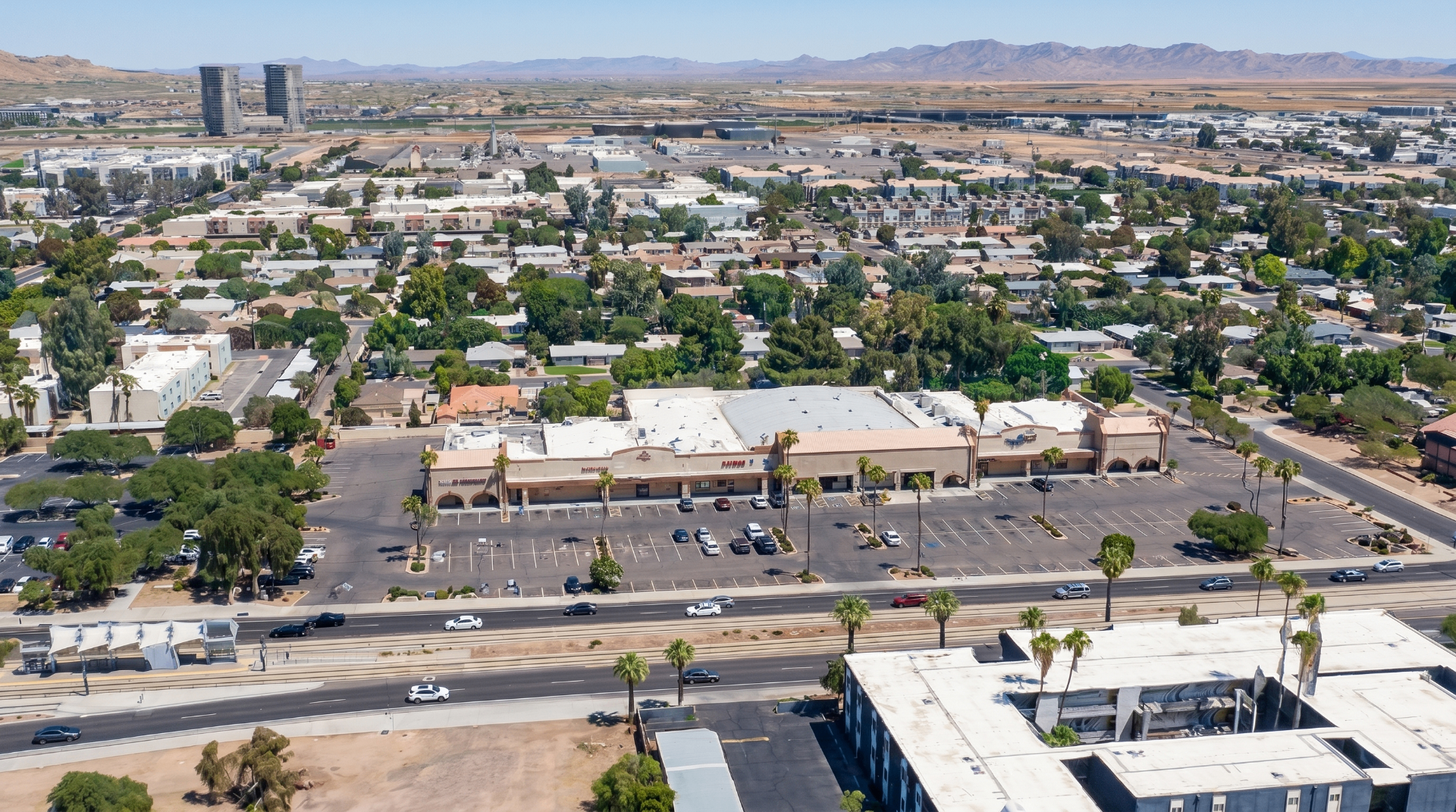

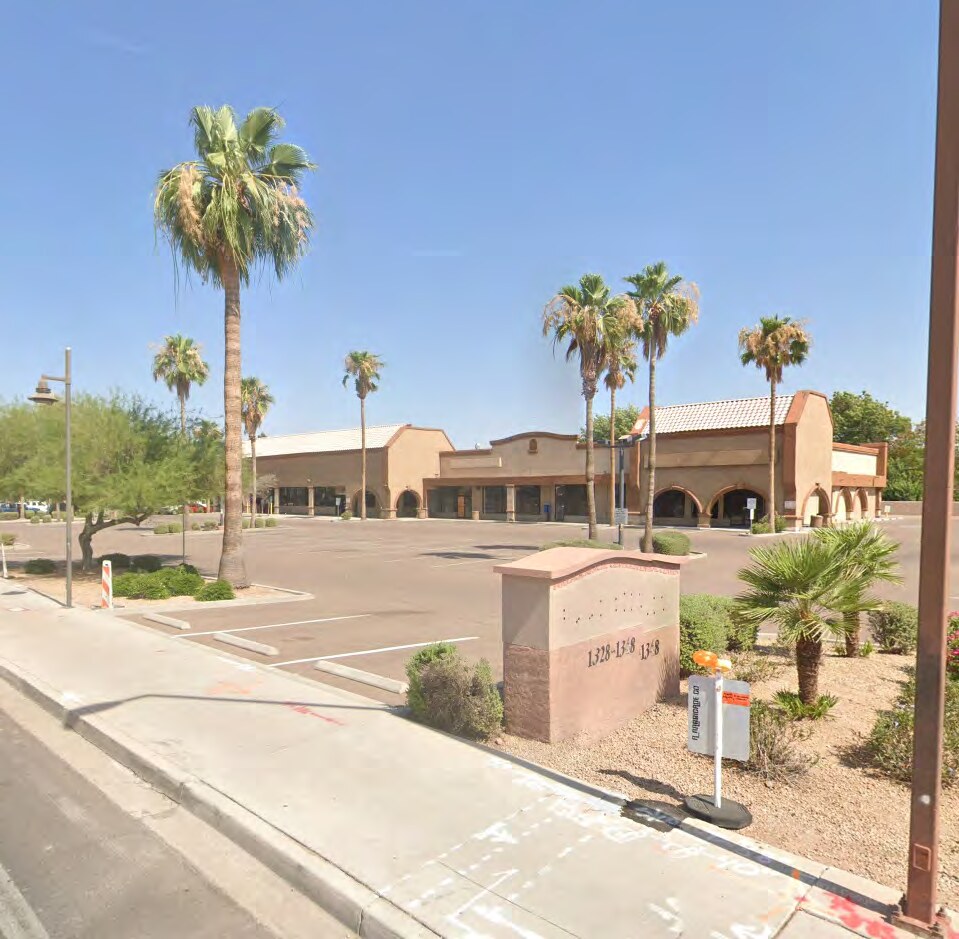

Site + Context
Apache Blvd TOD corridor — Valley Metro rail + streetcar adjacency unlocks density bonuses and reduced parking ratios. PAD overlay potential for additional height/mass.
● SECTION 02 — PROGRAM DATA — THREE SITES

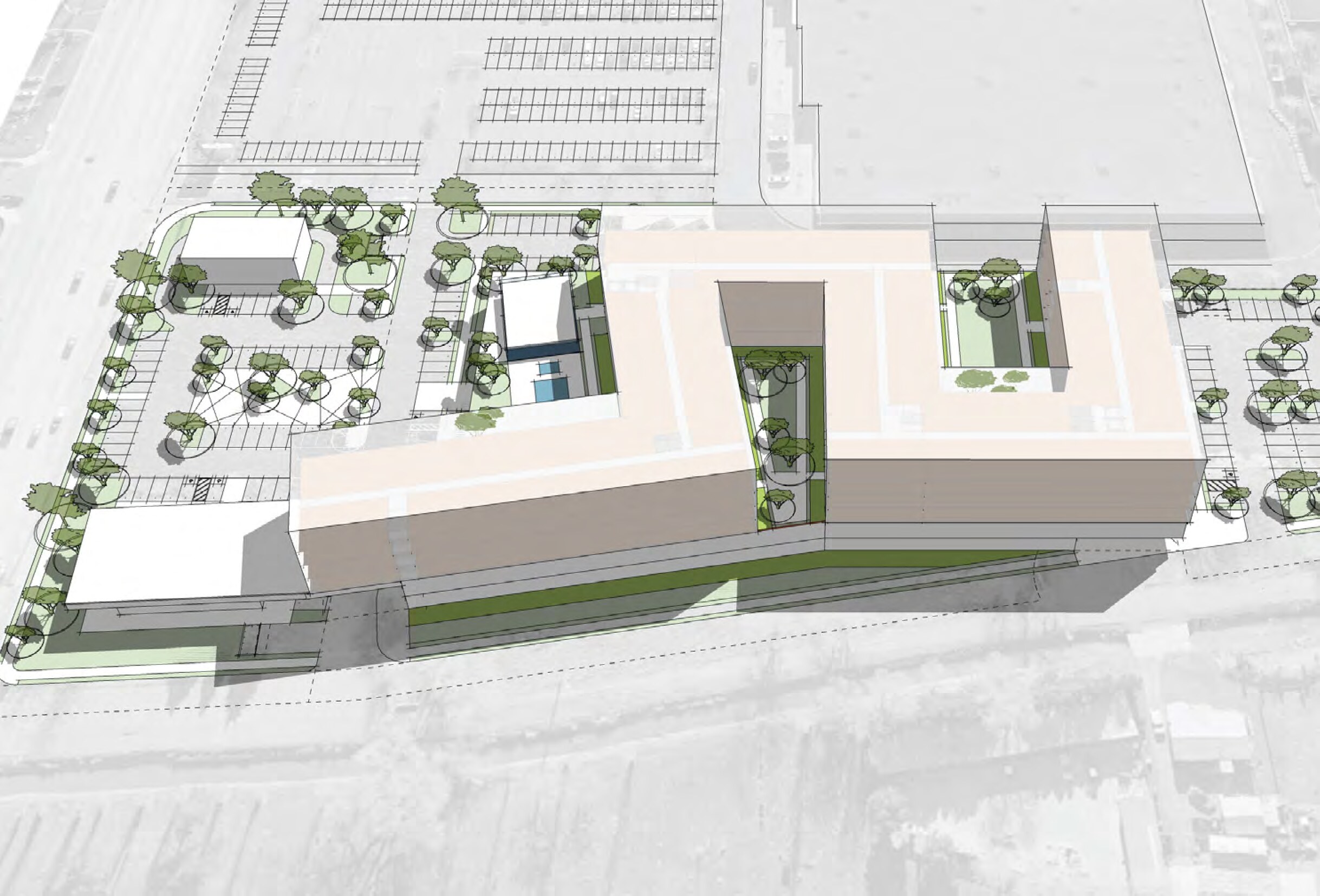

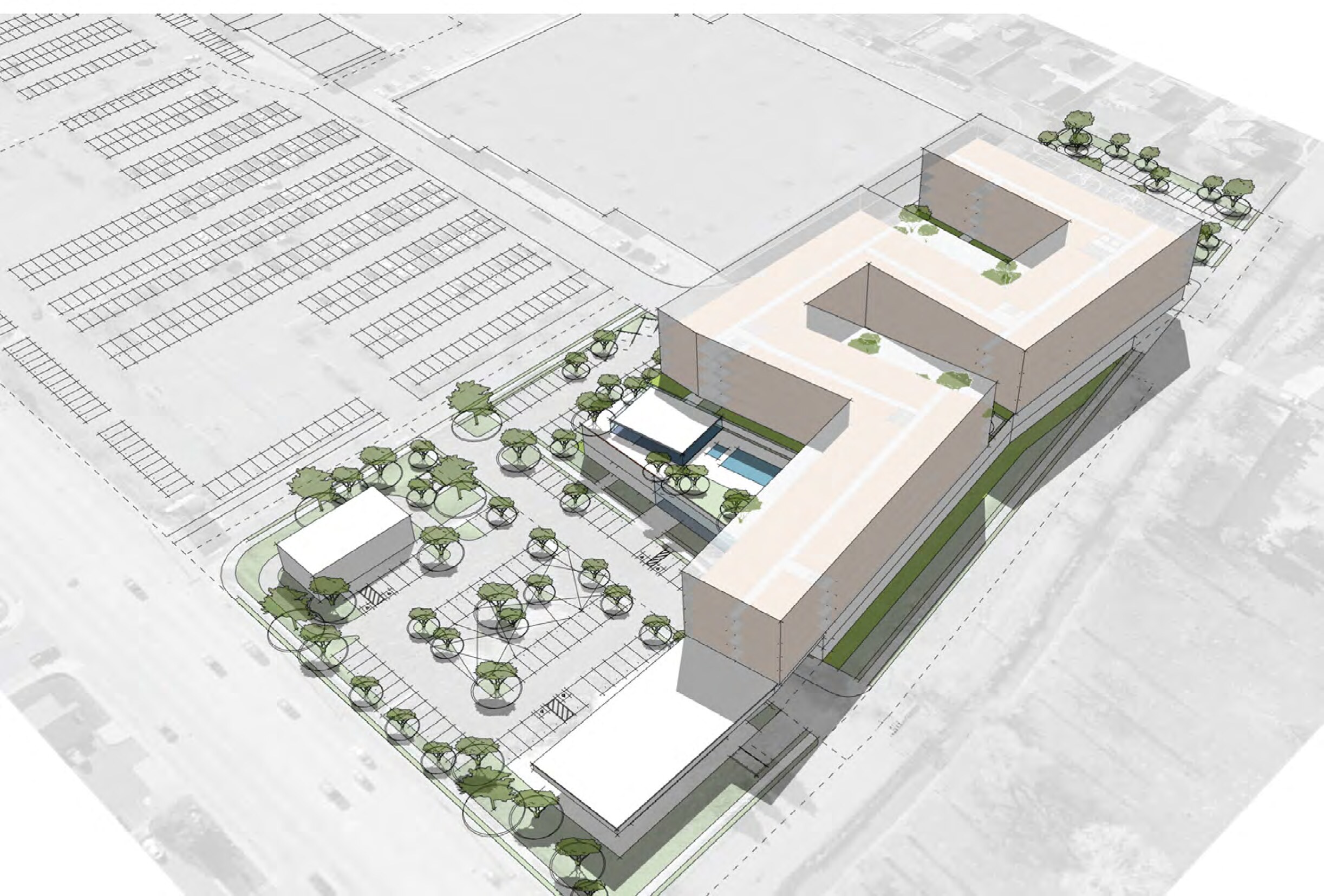

Program Data — Three Sites
244 residential units across three sites + grocer, retail, civic, rooftop F&B. Approx. 629 structured stalls across 3 garages.
Site A
3 stories + rooftop + lower
Civic2,800 SFCovered Rooftop19,500 SFGarage140 stalls
Site B
5 stories mixed-use
Grocer2,800 SFRetail19,500 SFResidences140 unitsGarage280 stalls
Site C
5 stories + lower ramp parking
Residences84 unitsTownhouses20 unitsGarage209 stalls
Site A · CivicSite A · Rooftop F&BSite B · GrocerSite B · RetailSite B · ResidencesSite C · ResidencesSite C · TownhousesStructured Parking (3 garages)Pedestrian PaseoTOD PlazaMech / BOH
● SECTION 03 — GBA STRESS TEST
GBA Stress Test
Residential SF/unit across 244 units. Total GBA also rolls in retail, amenity/civic, and structured parking footprint.
| Scenario | Avg GBA / Unit | Residential GBA | Combined GBA |
|---|---|---|---|
| Efficient | 1,000 SF/unit | 244,000 SF | 462,100 SF |
| Base | 1,150 SF/unit | 280,600 SF | 498,700 SF |
| Larger / Amenity-Heavy | 1,325 SF/unit | 323,300 SF | 541,400 SF |
| Current | 1150 SF/unit | 280,600 SF | 498,700 SF |
● SECTION 04 — CONSTRUCTION COST STRESS TEST
Construction Cost Stress Test
Project range against current combined GBA (498,700 SF). Wide because podium vs. wrap construction, grocer build-out, and garage scope move this fast.
| Scenario | Cost / SF | Total Project | Cost / Unit |
|---|---|---|---|
| Low | $380/SF | $190M | $777K |
| Base | $445/SF | $222M | $910K |
| High | $510/SF | $254M | $1.0M |
| Current | $445/SF | $251M | $1.0M |
● SECTION 05 — PARKING STRESS TEST
Parking Stress Test
Structured stalls across ratios applied to 244 units. PDF baseline pencils ~2.4 stalls/unit across 3 garages; TOD adjacency could push to 1.0–1.5.
| Parking Ratio | Units | Structured Stalls |
|---|---|---|
| 1.50 stalls/unit | 244 | 366 stalls |
| 2.00 stalls/unit | 244 | 488 stalls |
| 2.40 stalls/unit | 244 | 586 stalls |
| Current | 244 | 488 stalls |
● SECTION 06 — RETAIL / CIVIC / ROOFTOP STRESS TEST
Retail / Civic / Rooftop Stress Test
Grocer + retail + civic + rooftop F&B. Drives both cost and absorption — wider non-residential program needs stronger anchor commitments.
| Scenario | Amenity / Civic / Rooftop |
|---|---|
| Lean retail + civic | 18,000 SF |
| Base mixed-use | 25,000 SF |
| Grocer + rooftop heavy | 34,000 SF |
| Current | 25,000 SF |
● SECTION 07 — SCHEDULE STRESS TEST
Schedule Stress Test
Three coordinated sites with phasing dependencies. Sites B & C can deliver sooner; Site A (civic / rooftop) may hinge on funding alignment.
| Scenario | Months to Open |
|---|---|
| Phased aggressive | 30 mo |
| Base, 3-site phased | 38 mo |
| Conservative | 48 mo |
| Current | 38 mo |
● SECTION 08 — PRACTICAL READ · LIVE WORKING POSITION
Practical Read · Live Working Position
Your current slider position, summarized as a working stress envelope across all three sites.
Units
244
Residential GBA
280,600 SF
Retail + Grocer
22,300 SF
Combined GBA
498,700 SF
Structured Stalls
488
Project Range
$251M
Cost / Unit
$1.0M
Months to Open
38 mo
● SECTION 09 — QUICK FEASIBILITY READ
Quick Feasibility Read
Main risk areas that move the underwriting envelope at concept stage.
| Risk Area | Why It Matters |
|---|---|
| TOD overlay / density bonus | Valley Metro adjacency can unlock height + reduced parking — or trigger design review. |
| 3-site phasing | Coordinated entitlement across A / B / C; Site A may lag if civic funding stalls. |
| Grocer anchor commitment | 12K+ SF grocer drives ground-floor design, parking demand, and loading. |
| Construction type mix | Podium vs. wrap vs. structured across 3 buildings changes pro forma materially. |
| Parking yield math | 629 stalls across 3 garages is structural cost — TOD ratios could right-size. |
| ASU + Tempe absorption | 380+ residential units must time with student-housing + urban absorption cycles. |
| Apache + Dorsey traffic | Vehicular, bike, and pedestrian circulation must balance TOD with practical ratios. |
Disclaimer. Stress-test range only. Final cost depends on construction type per site, grocer + retail tenant build-outs, structured parking design, podium / wrap mix, unit mix, labor market, financing, TOD overlay outcomes, phasing strategy, and entitlement requirements. All drawings, renderings, and numbers are conceptual and for illustrative purposes only. See ZFramework™ Subscriber Disclaimer & Terms of Use Agreement.
